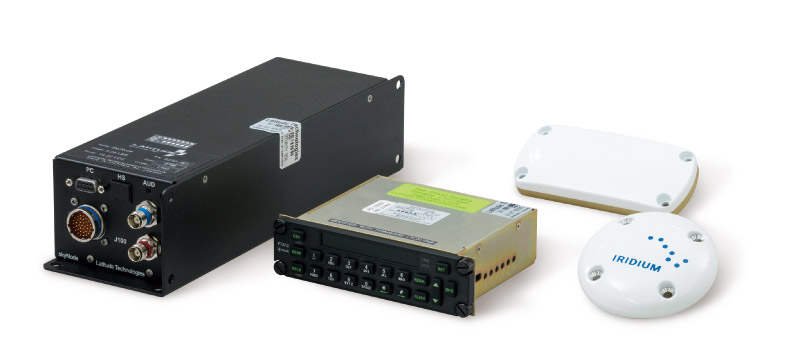

Iridium Satellite Phone- Skynode S200

NMS-01S

Iridium satellite communication phone for aircraft. It is smaller and lighter than previous phones, and the vibration test for helicopters has already been done.

By using Latitude WebSentinel of Latitude company, this one can manage aircraft tracking.

Navicom Aviation Corporation is providing original aircraft tracking system that combines with NMS- 01S

Supplemental Type Certificates

Fixed-Wing

*This table will scroll at the flick.

STC Authority Aircraft Type Product Availability
SA12-69 Issue 1 TC Fixed Wing Aircraft, See Approved Model List SkyNode S200
TBD FAA Fixed Wing Aircraft, See Approved Model List SkyNode S200
P-LSA06-103/D TC Aerostar 600, Piper PA-60-600 SkyNode S200
ST03456NY FAA Dash-8 Series SkyNode S200
SA11-84 Issue 3 TC Dash-8 Series SkyNode S200
SA12-54 Issue 1 TC Hawker Beechcraft 1900C, 1900D SkyNode S200
SA03233NY FAA Hawker Beechcraft 1900C, 1900D SkyNode S200
O-LSA16-138/D TC Viking Air DHC-6 Series 400 SkyNode S200

Rotorcraft

*This table will scroll at the flick.

STC Authority Aircraft Type Product Availability
SR03352NY FAA Bell 206 and 407, Airbus AS350, EC130B4, AS355 SkyNode S200
SH07-4 Issue 3 TC Bell 206 and 407, Airbus AS350, EC130B4, AS355 SkyNode S200
SR02475NY FAA Bell 204, 205, 212, 214, 412 SkyNode S200
SH06-4 Issue 3 TC Bell 204, 205, 212, 214, 412 SkyNode S200
P-LSH06-140/D Issue 1 TC AS350 B3 SkyNode S200
10028910 EASA Bell 212, 412 SkyNode S200
SH14-39 TC Airbus EC135 SkyNode S200
SR03536NY FAA Airbus EC135P1, EC135T1, EC135P2, EC135T2, EC135P2+, EC135T2+ SkyNode S200
2015S12-04 ANAC (Brazil) Airbus EC135P1, EC135T1, EC135P2, EC135T2, EC135P2+, EC135T2+ SkyNode S200

System Features

  • Auxiliary GPS serial data output for moving map, electronic flight bag, and 406 ELTs
  • Automated event-based reporting including Weight on Wheels/Skids and Out/Off/On/In messages
  • Meets forestry AFF live tracking
  • Reliable 2-way data networking/messaging
  • Remote polling and configuration
  • Data logging and event triggers from external switches/buttons and system bus sources
  • Internal fast-fix 20 channel WAAS GPS receiver
  • Multiple voice communication interface options.
  • Versatile mounting configurations
  • Background data logging

Physical Specifications

  • Size: 11.50” x 3.81” x 2.75” (29.2 x 9.7 x 7.2 cm)
  • Weight: 3.08 lbs (1400 g)

Electrical, Data, and RF Interfaces

  • Power input voltage: 12-34 VDC
  • Current: 0.5 A nominal, @ 28 VDC 0.8 max A during transmit
  • Serial data ports for Laptop/messaging terminal
  • Bluetooth/Wi-Fi capable of messaging with Blackberry, Android, and more
  • I/O support for remote switches and indicators
  • ARINC-429 receive bus interface (xx2 models)
  • RS-485 serial data bus interface (xx2 models)
  • 2-wire POTS phone interface (x2x models)
  • RS-485 serial data bus interface (xx2 models)
  • R6000/A interface for panel mounted messaging satcom dialing applications (x1x models)
  • Antenna options: Individual GPS and Iridium antenna or dual element GPS/Iridium antenna

Programming & Network

  • Iridium Direct Internet 2.x, Dial-up, FTP, UDP, TCP/IP
  • Iridium SBD, SMS messaging, email, and FAX
  • Custom event-based actions

Qualifications & Approvals

  • Operating Temperature range: -45º to +70º C
  • Humidity: > 95%
  • Altitude: 50,000 ft
  • DO-160E Env. Cat. B2-BAB[(SM)(U2F)]XXXXXXZBBXXXBXXXXX
  • FAA, TCCA and EASA STCs are available for over 900 different helicopters and fixed-wing aircraft
